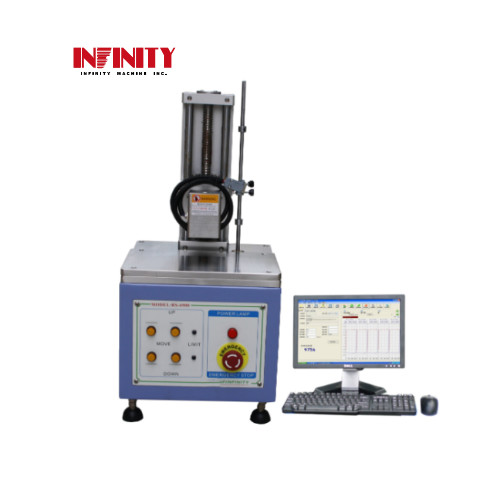

Quality Control Servo Control Key Stoke Force Tester for Load Stroke Curve Test

Quality Control Servo Control Key Stoke Force Tester for Load Stroke Curve Test

    • Quality Control Servo Control Key Stoke Force Tester for Load Stroke Curve Test
  • Quality Control Servo Control Key Stoke Force Tester for Load Stroke Curve Test

    उत्पाद विवरण:

    उत्पत्ति के प्लेस: चीन में बना
    ब्रांड नाम: Infinity Machine
    प्रमाणन: CE
    Model Number: RS-6900

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1 set
    मूल्य: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    संपर्क करें
    विस्तृत उत्पाद विवरण
    Capacity: 500gf, 2kgf, 5kgf Test stroke: 100mm
    Test speed: 0~200mm/min Speed accuracy: ±0.5%
    Main unit weight: 25kg Power supply: AC220V 5A or specified by user
    हाई लाइट:

    force testing machine

    ,

    button pull test machine



    Quality Control Servo Control Pressure Switch Tester for Load Stroke Curve Test



    Model: RS-6900



    Purpose:



    This machine is suitable for rubber, metal domes, key-press, switch, computer key-board etc to do[load-stroke] curve test and accomplish downforce, reboundforce tests. Adopt Windows Xp window program , easy to operate, storing test materials automatically: load-stroke curve, life decline curve, test result, moreover the test method can be preserved and adjusted.

    This machine adopt high precision load cell & servo motor for driving, can get the right [load-stoke] result, widely used for button supplier and quality control agent.



    Application:



    Rubber key-stoke force test

    Metal domes key-stoke force test

    Key-board mobile key-stoke force test

    Various of switch force test



    Tester Feature:



    Peak Force,Return Force,Distance,TT,Click frequency and kinetic impedance value FO can be showed on the picture directly, needless of artificial calculation(picture one)



    Automatism test method,it is controled by computer through testing stroke and load whether the key-stock is high or not.



    It can show FC,FC_D,FP,FP_D,FM,FM_D,FR,FR_D,CC(Click rate),CC_F,CR,TT,FO,FO_D ect after testing ,and it can judge Passed or Fail automatically.

    FC--- means yield force while press down under max load;

    FC-D--- means the stoke while press down at yield force;

    FP---- means the max force while press down;

    FP-D--- means the stoke while press down at max load;

    FM--- means the max. Rebound force;

    FM-D--- means the stoke while rebound at max force;

    FR--- means yield force under rebound;

    FR-D--- means the stoke while rebound under yield force;

    TT--- means the max. Testing stoke

    CC={(FP-FC)/FP}x100%=CC% CC means click rate / hand feeling

    CR={(FP-FR)/FP}x100%=CR% CR means rebound, click rate, rebound hand feeling

    FO--- means conducting force, means the force while conducted;

    FO_D--- means the stoke of conducting force

    FMAX--- means the max force (used for metal domes)



    Quality Control Servo Control Key Stoke Force Tester for Load Stroke Curve Test 0



    These three operation interface of simplified form, traditional form and English can be switched, they are used by global customers, N,Lb,gf,kgf can be switched freely.



    Test methods can be settled, stored, adjusted, amended freely, the results must be stored inside the hard-disk, it can print data, curve directly (one piece of A4 paper can store any indicated N pieces of curve pictures).



    Can get the life-span decay curve, report can be transfer to Excel and PDF.



    Specification:



     Model  RS-6900
     Capacity (optional)  500gf, 2kgf, 5kgf
     Unit (switchable)  Kgf, N, Lb, gf
     Load accuracy  ±0.5%
     Min. load display  0.01gf
     Test stroke  100mm
     Min. displacement display  0.001mm
     Test speed  0~200mm/min
     Speed accuracy  ±0.5%
     Motor  AC servo motor
     Main unit dimension (WxDxH)  300x270x500mm
     Main unit weight  25kg
     Power supply  AC220V 5A or specified by user



    Package:



    Quality Control Servo Control Key Stoke Force Tester for Load Stroke Curve Test 1



    Quality Control Servo Control Key Stoke Force Tester for Load Stroke Curve Test 2



    Quality Control Servo Control Key Stoke Force Tester for Load Stroke Curve Test 3
