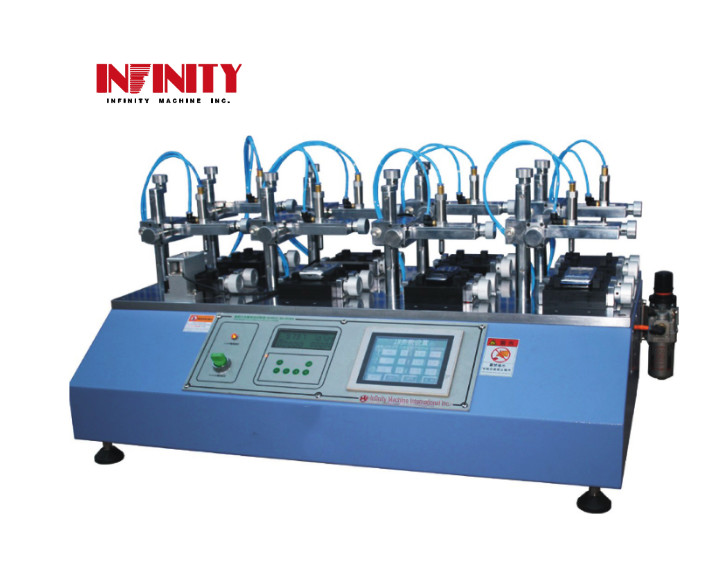

High Precise Keystroke Tester / Button Pull Test Machine IEC60068-2-68

High Precise Keystroke Tester / Button Pull Test Machine IEC60068-2-68

  • High Precise Keystroke Tester / Button Pull Test Machine IEC60068-2-68
  • High Precise Keystroke Tester / Button Pull Test Machine IEC60068-2-68
High Precise Keystroke Tester / Button Pull Test Machine IEC60068-2-68
उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन में बना
ब्रांड नाम: Infinity Machine
प्रमाणन: CE, ISO
Model Number: RS-8330A-16B
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1 set
मूल्य: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
संपर्क करें
विस्तृत उत्पाद विवरण
Test amount: 16 pcs Air cylinder stroke: 15mm
Test speed: 10~150 times /min Counting setting: 0~999,999 adjustable
Dimension: 1400x600x550mm Weight: About 135kg
Air source: ≧0.5MPa Power supply: AC220V 5A or specified by user
हाई लाइट:

keyboard key tester

,

button pull test machine



High Precise Keystroke Tester / Button Pull Test Machine IEC60068-2-68



Model: RS-8330A-16B



Purpose:



It is suitable for durability testing of all kinds of rubber keypads, metal domes, buttons, which are used at the mobile phone, electronic book, CD/ MP3, electronic dictionary, electrical appliance, all kind of controller and so on. This tester is used the touch panel and programmable and the SMC precise proportional pressure valve control, that can realize that the pressing force of air cylinder is adjustable and controllable by program.



Standard: IEC60068-2-68



Specialties:



1. All the critical components are imported from the famous companies in Japan, can make sure the quality of the machine.

The actuating components are from SMC Japan, such as: the Precise pressure adjusting valve( to realize the pressure can be adjusted precisely), electromagnetic valve, oil-water separator( make sure the durability of the pneumatic components ), double way air cylinders.



2. Precise pressure control (To set the pressing force at the touch screen directly)

To use the SMC precise proportional pressure valve for the pressure adjusting and use the Mitsubishi PLC control, can set the pressing force of air cylinders at the touch screen directly, the max force fluctuation is 1N, Or can set the pressing force and testing cycles randomly.



3. 16 stations can control the pressing force testing separately

Each station is equipped with 1 double acting air cylinder,1 electromagnetic value, and 1 precise proportional pressure valve. The tester has 16 stations, can test 16 buttons at max at the same time, every stations is independently controlled for the pressure setting, testing cycle setting, as applying the Ø16mm double acting cylinder, the testing force can satisfy the requirement of adjusting range 5N~50N,Ø10mm double acting cylinder, the testing force can be 2~25N.



4. The fixtures for 16 stations is adjustable at the direction of X-Y-Z.



Specification:



 Model  RS-8330A-16B
 Testing cylinders with tips  16 pcs
 Pressing force

 If using Ø16 cylinder: force will be 5~50N, Ø10 cylinder:  force will be 2~25N

 Air cylinder stroke  15mm
 Testing speed  10~150 cycles /min
 Counting setting  0~999,999 adjustable
 Dimension (WxDxH)  1400x600x550mm
 Weight  About 135kg
 Air source  ≧0.5MPa
 Power supply  AC220V 5A or specified by user
