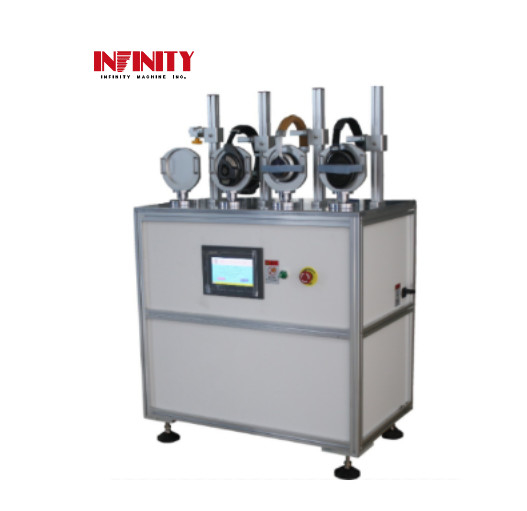

2 Stations Electronic Product Tester / Headset Torsional Rigidity Test

2 Stations Electronic Product Tester / Headset Torsional Rigidity Test

    • 2 Stations Electronic Product Tester / Headset Torsional Rigidity Test
  • 2 Stations Electronic Product Tester / Headset Torsional Rigidity Test

    उत्पाद विवरण:

    उत्पत्ति के प्लेस: चीन में बना
    ब्रांड नाम: Infinity Machine
    प्रमाणन: CE, ISO
    Model Number: RS-8106C

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1 set
    मूल्य: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    संपर्क करें
    विस्तृत उत्पाद विवरण
    Headphone specimen: 2pcs (4 earphone test together) Driver mode: AC servo motor
    Torque angle: 0~±180° adjustable Test speed range: 10~60times/min
    Counter: 1~999999 times available Machine dimension: W850 x D360 x H 1200mm
    Machine weight: 125kg Power: AC220V 50Hz 5A or specified by user
    हाई लाइट:

    electrical testing machine

    ,

    electronic tester



    2 Stations Electronic Product Tester / Headset Torsional Rigidity Test



    Model: RS-8106C



    Purpose:



    Headphone earphone rotating axle do torsion life time test. clamping the earphone on left/right fixture, headphone band fit on center support arm, set the specific angle, rotate speed, left earphone and right earphone rotate from different way, check the specimen status once tested to the set times.



    Feature:



    1; adopt MGCS TFT7 true-color LCD + Mitsubishi PLC controller, can set rotate angle, test speed, test internal stopping time;

    2; adopt Japan Panasonic servo motor driver, high speed & low noise, working stable, quality reliable.

    3; can test 2sets(4pcs earphone) for one time, high efficient, can use Velcro and positioning fixture to fit the headphone.



    Specification:



     Specimen testing sets  2pcs (4 earphone test together)
     Driver mode  AC servo control
     Torque angle  0~±180° adjustable
     Test speed range  10~60times/min
     Counter  touchable screen, 1~999999 times can be set
     Dimension  W850 x D360 x H 1200mm
     Weight  Around 125kg
     Power supply  AC220V 50Hz 5A or specified by user
