Stepless Compressive Strength Testing Machine Computerized For Contaner

Stepless Compressive Strength Testing Machine Computerized For Contaner

Stepless Compressive Strength Testing Machine Computerized For Contaner

उत्पाद विवरण:

उत्पत्ति के प्लेस: चीन में बना
ब्रांड नाम: Infinity Machine
प्रमाणन: CE, ISO
Model Number: RS-8401A

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1 set
मूल्य: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
अब से संपर्क करें
विस्तृत उत्पाद विवरण
Max. capacity: 50KN Test space: 1000x1000x1200mm
Load magnifying rate: stepless Software: Microcomputer control
Motor: AC servo Motor Dimension: 1950x1200x2000mm
Weight: 1550kg Power supply: AC220V 5A or specified by user



Stepless Compressive Strength Testing Machine Computerized For Contaner



Model: RS-8401A



Purpose:



This machine adopts AC inverter motor drive, belt + high-precision ball screw drive, drive the upper platen to complete the pressure operation, accurately enter the (load) condition of the specimen into the microcomputer processor for data processing by high-precision pressure sensor pressure, real-time display: compressive resistance, peak value of compressive resistance (maximum crushing force) displacement (deformation) maximum deformation (when the carton crushing deformation), and print the desired test data.



[Test Standards]: GB/T4857.4 GB/T4857.16 ISO2872, ASTM D642

[Production Criterion]: GB/T16491, TAPPI-T804, JIS-Z0212



Specification:



 Model  RS-8401A
 Capacity (optional)  20KN 2T
 Unit (switchable)  N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2
 Load resolution  1/25,000
 Load accuracy  ±1%
 Load magnifying rate  stepless
 Test space  1000x1000x1200mm
 Test speed  5~100mm/min
 Stroke resolution  0.001mm
 Software  Microcomputer control
 Motor  AC motor
 Dimension (WxDxH)  1950x1200x2000mm
 Weight  1550kg
 Power supply  AC220V 5A or specified by user

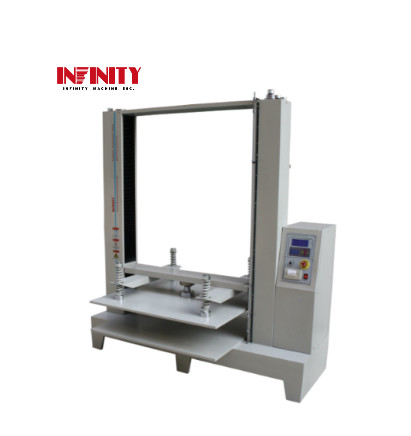

Picture:



Stepless Compressive Strength Testing Machine Computerized For Contaner



Stepless Compressive Strength Testing Machine Computerized For Contaner
