|उत्पत्ति के प्लेस:||चीन में बना|
|ब्रांड नाम:||Infinity Machine|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard export wooden case with operation manual and video inside.|
|Delivery Time:||Shipped in 15 days after payment|
|Payment Terms:||D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||200 sets per month|
|Driving method of X-Y axis:||Servo motor from Panasonic||Transducer:||50N（5kgf）1000N(100kgf)|
|Range of driving:||0~150mm or specified by user||Test range of displacement:||0~150mm|
|Max size of specimen:||W300xD300mm||Size of main unit:||W765xD895mmxH1250mm|
|Weight:||About 250kg||Size with table:||W1400xD900xH1900mm|
keyboard key tester,
button pull test machine

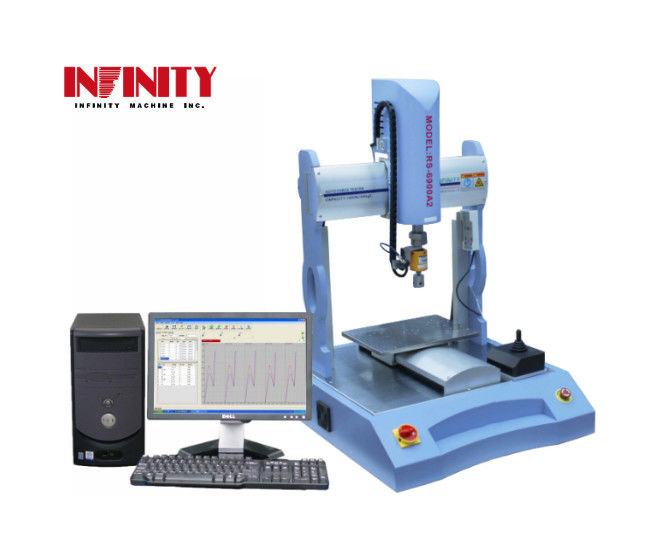

Multi Function Keystroke Tester , Force Testing Machine Compression
This Keystroke Force Tester is controlled by X,Y,Z axes, it is suitable for the button force test, the compression for electronic products, the 3 points bending test, 4points bending test.
1. This machine is moved by X, Y, Z axes, X,Y are to move the testing platform, so that can realize the multi-points compression test for the buttons
force test and the electronic products compression test; Z axis is connected to the transducer to apply the test force ,collect the test force and
control the compression time.
2. The system is controlled by computer professional software, can set the test force, test time, test cycles, and test speed, and can collect the test
force ,test time, test speed to generate the test graph.
3. X,Y,Z axes are driven by servo motor from Japanese Panasonic to drive; transmission by precise ballscrew which can achieve the low noise and
4. This machine is equipped with a controlled box, the operator can also use the box for the tester setting.
5. This machine is table top type, a special table as the accessory.
6. Chinese or English interface can be optional . The unit (N,Lb,gf,kgf) can be switched freely .
7. The testing method can be set, saved and called for use from the saving record . The data and curve can be printed directly
8. The life damping curve can be created, the test report can be converted to Excel and PDF file format.
1. The Multi-points compression
2. Button force testing
3. The 3pts and 4pts bending test
The standard accessories of the machine:
1. Compression pads( according to custom requirement)
2. 3Points bending fixture
3. 4Poionts bending fixture
4. Computer (DELL)installed with WIN 7 system, and professional test software.
5. Table as shown in the machine picture.
6. Hand control box.
7. Tools( screw drivers)
|Driving method of Z axis||Servo motor of Japanese Panasonic|
Range of driving (up and down)
|Test range of load||0~50N(5kgf)or 0~1000N(100kgf)|
|Resolution of load||0.01N|
|Accuracy of load||±0.5%F.S|
|Test range of displacement||0~150mm|
|Resolution of displacement||0.001mm|
|Accuracy of displacement||±0.03mm|
|Range of test speed||0.1~150mm/min|
|Driving method of X-Y axis||Servo motor from Panasonic|
|Control way||X:(right and left) Y:(forward and backward)|
|Driving range||X:0~300mm Y:0~300mm|
|Resolution of displacement||0.002mm|
|Accuracy of displacement||±0.05mm|
|Range of moving speed||5~200mm/sec|
|Max size of specimen||W300xD300mm|
|Size of machine||W765xD895mmxH1250mm|
|Size with table||W1400xD900xH1900mm|
