| Place of Origin: | Made In China |
| ब्रांड नाम: | Infinity Machine |
| प्रमाणन: | CE ISO |
| Model Number: | IN-B6303 |
| Minimum Order Quantity: | 1 |
|---|---|
| मूल्य: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets / month |
| Features: | Fully automated testing;High-precision positioning;Conduction function | Product name: | Wire Swing Life Tester |
|---|---|---|---|
| Model: | IN-B6303 | Application: | Mainly used for small household appliances. |
| Test station: | 1 Slot | Bending angle: | ±720°The left and right bending angles can be set independently |
| Power: | Electronic | Warranty: | 1 Year |
PLC Control Touch Screen Automatic Testing Wire Swing Life Tester
Model:IN-B6303
Application:
This equipment is mainly used for small household appliances. For example, at the charger connection, perform a lifting and swing test.
Adopt numerical control method to adjust angle, speed and times. Touch screen operation, high precision, low noise and long life.

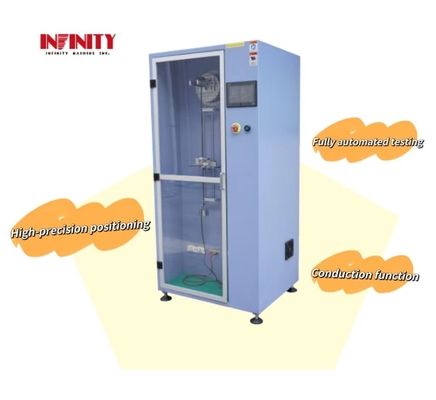

Features:
1.Fully automated testing
Using Japanese OMRON touch screen + Mitsubishi PLC control, the operator can automatically complete the test after setting the test angle, test speed, and test number on the touch screen.
2.High-precision positioning
Driven by Japanese Panasonic servo motor, it has high speed, high precision and accurate positioning, low noise and can be used for a long time.
3.Conduction function
Using the continuity determination function, if the wire is damaged after N swing tests, the test will automatically stop.
Technical Parameters:
|
Model |
IN-B6303 |
|
Test station |
1 Slot |
|
Bending angle |
±720°The left and right bending angles can be set independently |
|
Bend count |
0-9999999 Times (Can be set), screen indicate |
|
Test speed |
1~60 Times/min |
|
Hoisting space |
1390~1395mm |
|
Load weight |
1PC=200g,1PC=500g, Total: PCS |
|
Body weight |
Around 56kg |
|
Dimensions |
W800×D650×H1700mm |
|
Power supply |
AC220V 3A |
|
Emergency stop response time |
100ms |

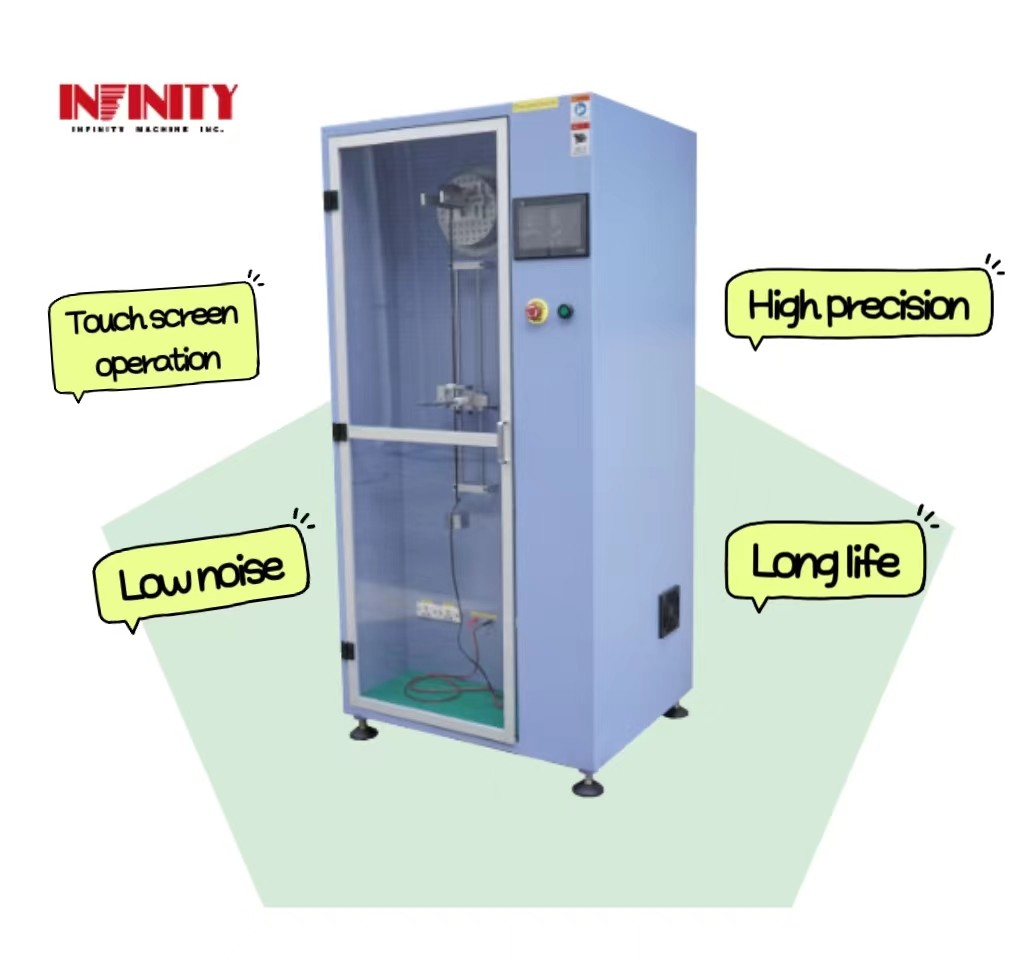

Equipment picture:
Testing software:
After setting the test angle, test speed, and test times, the test can be completed automatically.
Our services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
