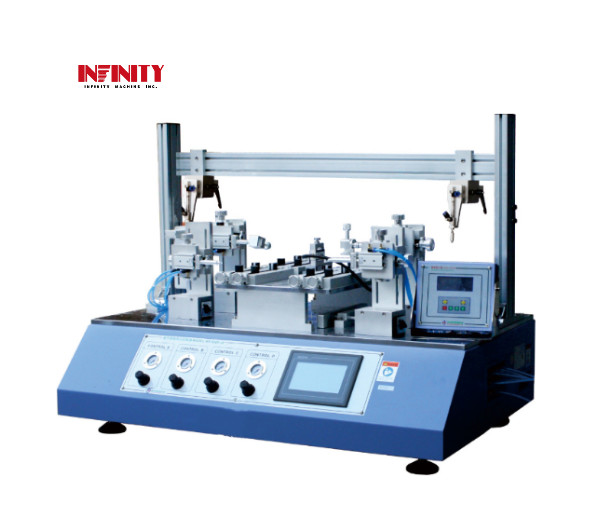

Button Click Electronic Product Tester Simulation Operation Multi Function

Button Click Electronic Product Tester Simulation Operation Multi Function

  • Button Click Electronic Product Tester Simulation Operation Multi Function
  • Button Click Electronic Product Tester Simulation Operation Multi Function
Button Click Electronic Product Tester Simulation Operation Multi Function
उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन में बना
ब्रांड नाम: Infinity Machine
प्रमाणन: CE, ISO
Model Number: RS-6200A
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1 set
मूल्य: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
संपर्क करें
विस्तृत उत्पाद विवरण
Air cylinders: 4sets The stroke of air cylinders: 0~30mm or 0~45mm
The testing table size: W1100*D450*H300mm Cylinders installation range: 800*600mm
The force of air cylinders: 100~1500gf(or as designating) Dimension: W1200×D800×H915mm
Weight: 155kg Power supply: 1∮,AC110V,10A
हाई लाइट:

phase rotation tester

,

electrical testing machine



Button Click Electronic Product Tester Simulation Operation Multi Function



Model: RS-6200A



Application and brief introduction:



This tester is to simulate to operate the electronic product, it is to click the power button, the buttons on edge of the product, and insert & extract the USB at the USB port, the earphone plug to the earphone port,to check the durability of the buttons on edge and the connection ports. This tester is controlled by touch panel, the parameters setting, editing can be done by the touch panel.



The main specialties:



1. Tester is controlled by touch panel, the set-able testing parameters: the time of air cylinders out and withdrawing, sequencing testing (4 sets

    air cylinders working independently in different time) and simultaneous testing, testing cycles; the testing method can be edited,recoded, and

    called for use.



2. All the action components are from Japan: air cylinders, electromagnetic valve, pressure adjusting valve from SMC, PLC from Mitsubishi.



3. The position of air cylinders are adjustable according to the needed testing position, it is designed to be magnet attaching, easy to be moved;

    the tester can test 4 tablets as the size of iPad at the same time.



Main technical specification:



 Air cylinders  4sets
 The stroke of air cylinders  0~30mm or 0~45mm
 The range of testing cycle  0~999999(Set-able)
 The speed of hitting/ inser t& extract  10~120cycles/min(Adjustable)
 The testing table size  W1100*D450*H300mm
 Cylinders installation range  800*600mm
 The force of air cylinders  100~1500gf(or as designating)
 Air source  ≥0.6MPa
 Dimension  W1200×D800×H915mm
 Weight  155kg
 Power supply  1∮,AC110V,10A



Drawing and size:



Button Click Electronic Product Tester Simulation Operation Multi Function 0

Button Click Electronic Product Tester Simulation Operation Multi Function 1



The power button fixture and testing drawing:



Button Click Electronic Product Tester Simulation Operation Multi Function 2



Can satisfy to test 4 tablets as iPad size:



Button Click Electronic Product Tester Simulation Operation Multi Function 3



The sample holding fixture:



Button Click Electronic Product Tester Simulation Operation Multi Function 4Button Click Electronic Product Tester Simulation Operation Multi Function 5
