| उत्पत्ति के प्लेस: | चीन में बना |
| ब्रांड नाम: | Infinity Machine |
| प्रमाणन: | CE, ISO |
| Model Number: | RS-8330C-5 |
| Minimum Order Quantity: | 1 set |
|---|---|
| मूल्य: | विनिमय योग्य |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| मापी गई दूरी: | 10 मिमी | कार्यक्षेत्र का मैनुअल टेक-ऑफ और लैंडिंग: | 0~100मिमी |
|---|---|---|---|
| मापी गई गति: | 1~81 बार/मिनट | ड्रॉपिंग टाइम सेटिंग: | 0~999999 बार |
| विच्छेदन समय निर्धारण: | 0~10 बार | मशीन का आकार: | W1880×D400×H1100 मिमी |
| मशीन वजन: | 195 किग्रा | विद्युत आपूर्ति: | 1∮220V 50Hz 5A |
| प्रमुखता देना: | keyboard key tester,force testing machine |
||

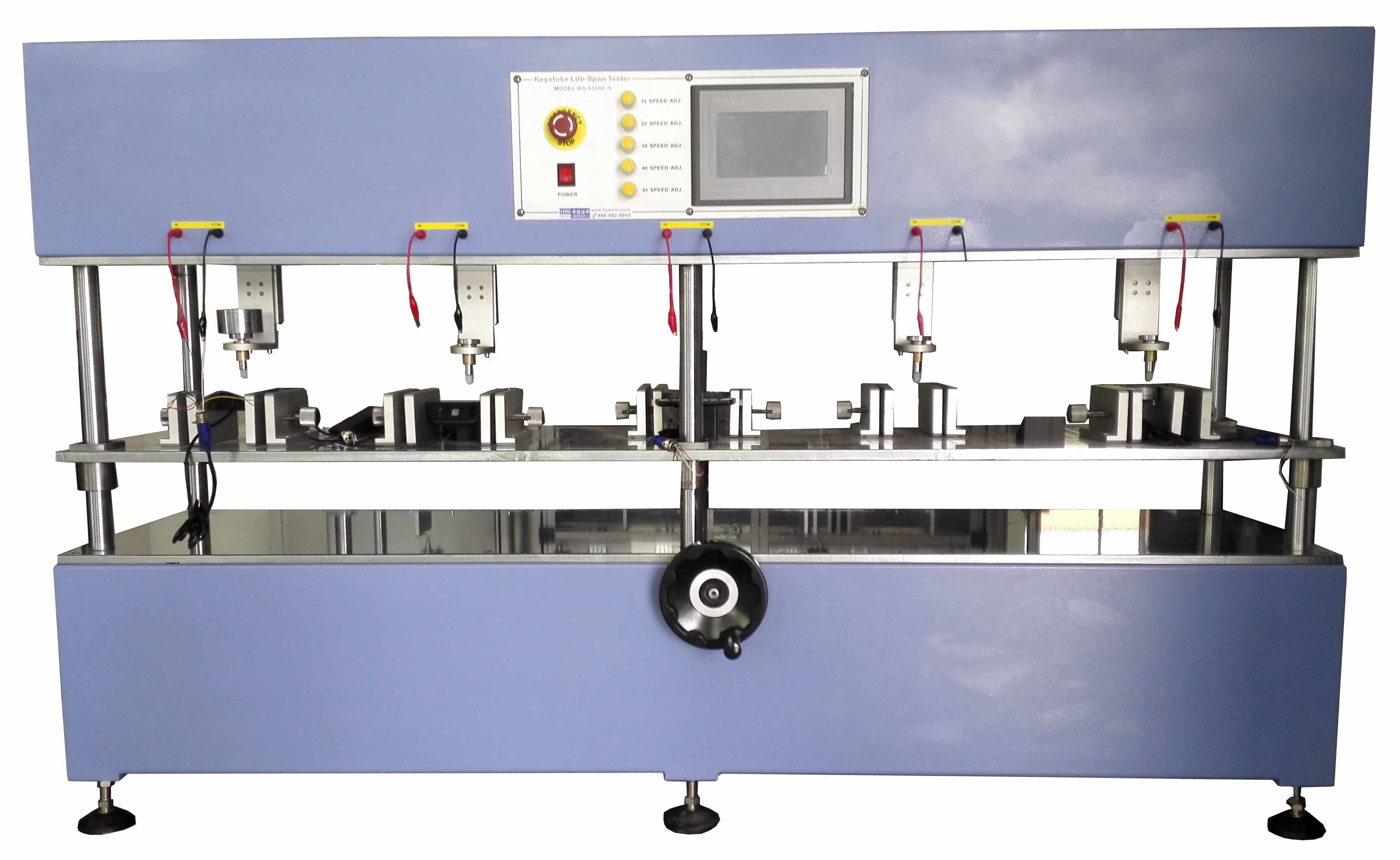

Adjustable Speed Keystoke Life-Span Tester / Tesing Machine Click Fatigue Tests
Model: RS-8330C-5
Purpose:
The machine is applicable for click fatigue tests of various buttons.
Main performance features:
1. The machine is controlled by Kunlun color touch screen and Mitsubishi PLC and the test number and disconnection times can be set up in
touch screen.
2. The machine adopts the governor motor and the reduction gears to test power source and the test speed can be controlled.
3. The machine is equipped with many fixed orifices. The locations of clamps are adjustable. The test board can go up and down and is
suitable for tests of samples in many sizes.
4. The machine is equipped with a USB interface and test data can be derived with a USB flash disk.
Specification:
| Model | RS-8330C-5 |
| Measured distance | 10mm |
| Manual take-off and landing of workbench | 0~100mm |
| Measured speed | 1~81 times/min |
| Dropping time setting | 0~999999 times |
| Disconnection time setting | 0~10 times |
| Machine size | W1880×D400×H1100mm |
| Machine weight | 195kg |
| Power supply | 1∮220V 50Hz 5A |
Testing software:
